Hallo Christian,

Fehler:
Failed to load resource: the server responded with a status of 400 (Bad Request) http://ecoraspi10:8080/entity.json?unique=1755967716719 <http://:8080/entity.json?unique=1755967716719>
WebSocket connection to 'ws://ecoraspi10:8082/' failed: Could not connect to the server.
WebSocket connection to 'wss://demo.volkszaehler.org/ws' failed: There was a bad response from the server.
Wenn ich den Link auf entity.json im Browser öffne, wird folgendes angezeigt:
ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ
Sagt Dir das etwas?
Viele Grüße
Armin
> Am 23.08.2025 um 13:22 schrieb Christian Weiske <cweiske at cweiske.de>:
>
> Hallo Armin,
>
> mach im Browser mal die Entwicklertools auf, dort dann den Netzwerk-Tab. Was kommt als Antwort bei dem 400er Fehler zurück? Da müsste mehr stehen als nur 400 Bad Request.
>
> Am 23. August 2025 11:14:59 MESZ schrieb applicationMGR ecoCuyo <applicationMGR at ecoCuyo.de <mailto:applicationMGR at ecoCuyo.de>>:
>> Hallo zusammen,
>>
>> habe einen neuen Volkszäher installiert (vom image).
>> Leider kann ich keine Kanäle anlegen. Beim Versuch erscheint der o.g. Fehler am Frontend: Network Error /entity.json?unique=1755939064657: Bad Request
>>
>> Bei weiteren Fragen freue mich über Rückmeldungen...
>>
>> Würde mich freuen, wenn mir jemand weiterhelfen kann!
>>
>> Viele Grüße
>> Armin
>>
>>
>> Hier einige Infos zur Konfiguration:
>>
>> $ cat /etc/os-release
>> PRETTY_NAME="Raspbian GNU/Linux 11 (bullseye)"
>> NAME="Raspbian GNU/Linux"
>> VERSION_ID="11"
>> VERSION="11 (bullseye)"
>> VERSION_CODENAME=bullseye
>> ID=raspbian
>> ID_LIKE=debian
>> HOME_URL="http://www.raspbian.org/"
>> SUPPORT_URL="http://www.raspbian.org/RaspbianForums"
>> BUG_REPORT_URL="http://www.raspbian.org/RaspbianBugs"
>>
>> $ vzlogger -V
>> 0.8.1
>> based on git version: heads/master-0-g76e868feed
>> last commit date: Wed, 20 Apr 2022 08:39:54 +0200
>>
>>
>> $ mysql -V
>> mysql Ver 15.1 Distrib 10.5.29-MariaDB, for debian-linux-gnueabihf (armv8l) using EditLine wrapper
>>
>> MariaDB [volkszaehler]> show grants for 'vz'@'localhost';
>> +-----------------------------------------------------------------------------------------------------------+
>> | Grants for vz at localhost |
>> +-----------------------------------------------------------------------------------------------------------+
>> | GRANT USAGE ON *.* TO `vz`@`localhost` IDENTIFIED BY PASSWORD '*C142FB215B6E05B7C134B1A653AD4B455157FD79' |
>> | GRANT SELECT, INSERT, UPDATE, DELETE ON `volkszaehler`.* TO `vz`@`localhost` |
>> | GRANT DELETE ON `volkszaehler`.`aggregate` TO `vz`@`localhost` |
>> | GRANT DELETE ON `volkszaehler`.`properties` TO `vz`@`localhost` |
>> | GRANT DELETE ON `volkszaehler`.`entities_in_aggregator` TO `vz`@`localhost` |
>> +-----------------------------------------------------------------------------------------------------------+
>> 5 rows in set (0.001 sec)
>>
>> MariaDB [volkszaehler]> show grants for 'vz-admin'@'localhost';
>> +-----------------------------------------------------------------------------------------------------------------+
>> | Grants for vz-admin at localhost |
>> +-----------------------------------------------------------------------------------------------------------------+
>> | GRANT USAGE ON *.* TO `vz-admin`@`localhost` IDENTIFIED BY PASSWORD '*A36BA850A6E748679226B01E159EF1A7BF946195' |
>> | GRANT ALL PRIVILEGES ON `volkszaehler`.* TO `vz-admin`@`localhost` WITH GRANT OPTION |
>> +-----------------------------------------------------------------------------------------------------------------+
>> 2 rows in set (0.000 sec)
>>
>> MariaDB [volkszaehler]> show grants for 'root'@'localhost';
>> +-----------------------------------------------------------------------------------------------------------------------------------------+
>> | Grants for root at localhost |
>> +-----------------------------------------------------------------------------------------------------------------------------------------+
>> | GRANT ALL PRIVILEGES ON *.* TO `root`@`localhost` IDENTIFIED VIA mysql_native_password USING 'invalid' OR unix_socket WITH GRANT OPTION |
>> | GRANT PROXY ON ''@'%' TO 'root'@'localhost' WITH GRANT OPTION |
>> +-----------------------------------------------------------------------------------------------------------------------------------------+
>> 2 rows in set (0.000 sec)
>>
>>
>> Ansonsten ist die DB leer:
>>
>> MariaDB [volkszaehler]> show tables;
>> +------------------------+
>> | Tables_in_volkszaehler |
>> +------------------------+
>> | aggregate |
>> | data |
>> | entities |
>> | entities_in_aggregator |
>> | properties |
>> +------------------------+
>> 5 rows in set (0.001 sec)
>>
>> MariaDB [volkszaehler]> select * from entities;
>> Empty set (0.001 sec)
>>
>> MariaDB [volkszaehler]> select * from properties;
>> Empty set (0.001 sec)
>>
>> MariaDB [volkszaehler]> select * from data;
>> Empty set (0.001 sec)
>>
>> Die /var/www/volkszaehler.org/etc/ <http://volkszaehler.org/etc/> <http://volkszaehler.org/etc/config.yaml>config.yaml <http://volkszaehler.org/etc/config.yaml> sieht so aus:
>>
>> $ cat config.yaml
>> # general settings overriding php configuration
>> php:
>> timezone: Europe/Berlin
>> locale: ['de_DE', 'en_US', 'C']
>>
>> # Doctrine database configuration
>> # http://www.doctrine-project.org/projects/doctrine-dbal/en/2.6
>> db:
>> driver: pdo_mysql
>> host: localhost
>> # port: 3306
>> user: vz
>> password: demo
>> charset: utf8
>> dbname: volkszaehler
>> path: volkszaehler # only used for sqlite
>>
>> # db admin credentials (used by doctrine cli and setup script)
>> admin:
>> user: vz-admin
>> password: secure
>>
>> # database optimizer - leave empty for automatic
>> # optimizer: Volkszaehler\Interpreter\SQL\MySQLOptimizer # provides additional group=15m setting for demo purposes
>>
>> # push server for realtime frontend updates
>> push:
>> server: 5582
>> broadcast: 8082
>> # routes for wamp access
>> wamp:
>> - /
>> - /ws
>> # routes for plain web socket access
>> websocket:
>> - /socket
>>
>> network:
>> # limit maximum POST body size, e.g. 4096
>> postlimit: false
>>
>> # enable debug messages by default if true
>> debug: false
>>
>> VZLOGGER.conf
>>
>> $ cat /etc/vzlogger.conf
>> /**
>> * vzlogger configuration
>> *
>> * Use properly encoded JSON with javascript comments
>> *
>> * Take a look at the wiki for detailed information:
>> * http://wiki.volkszaehler.org/software/controller/vzlogger#configuration
>> *
>> * For an online configuration editor refer to:
>> * http://volkszaehler.github.io/vzlogger/
>> */
>>
>> {
>> // General settings
>> "verbosity": 5, // log verbosity (0=log_alert, 1=log_error, 3=log_warning, 5=log_info, 10=log_debug, 15=log_finest)
>> "log": "/var/log/vzlogger/vzlogger.log", // log file, optional
>> "retry": 3, // http retry delay in seconds
>>
>> // Build-in HTTP server
>> "local": {
>> "enabled": false, // enable local HTTPd for serving live readings
>> "port": 8080, // TCP port for local HTTPd
>> "index": true, // provide index listing of available channels if no UUID was requested
>> "timeout": 30, // timeout for long polling comet requests in seconds (0 disables comet)
>> "buffer": 600 // HTTPd buffer configuration for serving readings, default -1
>> // >0: number of seconds of readings to serve
>> // <0: number of tuples to server per channel (e.g. -3 will serve 3 tuples)
>> },
>>
>> // realtime notification settings
>> "push": [
>> {
>> "url": "http://127.0.0.1:5582 <http://127.0.0.1:5582/>" // notification destination, e.g. frontend push-server
>> }
>> ],
>>
>> // mqtt client support (if ENABLE_MQTT set at cmake generation)
>> "mqtt": {
>> "enabled": false, // enable mqtt client. needs host and port as well
>> "host": "test.mosquitto.org <http://test.mosquitto.org/>", // mqtt server addr
>> "port": 1883, // 1883 for unencrypted, 8883 enc, 8884 enc cert needed,
>> "cafile": "", // optional file with server CA
>> "capath": "", // optional path for server CAs. see mosquitto.conf. Specify only cafile or capath
>> "certfile": "", // optional file for your client certificate (e.g. client.crt)
>> "keyfile": "", // optional path for your client certficate private key (e.g. client.key)
>> "keypass": "", // optional password for your private key
>> "keepalive": 30, // optional keepalive in seconds.
>> "topic": "vzlogger/data", // optional topic dont use $ at start and no / at end
>> "id": "", // optional static id, if not set "vzlogger_<pid>" will be used
>> "user": "", // optional user name for the mqtt server
>> "pass": "", // optional password for the mqtt server
>> "retain": false, // optional use retain message flag
>> "rawAndAgg": false, // optional publish raw values even if agg mode is used
>> "qos": 0, // optional quality of service, default is 0
>> "timestamp": false // optional whether to include a timestamp in the payload
>> },
>>
>> // Meter configuration
>> "meters" : [{
>> "protocol" : "sml",
>> "enabled" : true,
>> "device" : "/dev/ttyUSB0",
>> "parity" : "8N1",
>> "baudrate" : 9600,
>> "use_local_time": true, // manche Zaehler sind falsch konfiguriert und liefern unbrauchbare Zeitstempel
>> "aggtime" : -1,
>> "aggfixedinterval" : true,
>> "channels": [{
>> "api": "volkszaehler", // middleware api, default volkszaehler
>> "uuid" : "",
>> "middleware" : "http://localhost/middleware.php",
>> "identifier" : "1-0:1.8.2", // kann bei manchen Zählern auch "1-0:1.8.0" sein (siehe Logfile)
>> "aggmode" : "MAX"
>> }]
>> }
>> ]
>> }
>>
> --
> Mit freundlichen Grüßen,
> Christian Weiske
-------------- nächster Teil --------------
Ein Dateianhang mit HTML-Daten wurde abgetrennt...
URL: <http://demo.volkszaehler.org/pipermail/volkszaehler-users/attachments/20250823/d8bdcb7d/attachment-0001.htm>
-------------- nächster Teil --------------
Ein Dateianhang mit Binärdaten wurde abgetrennt...

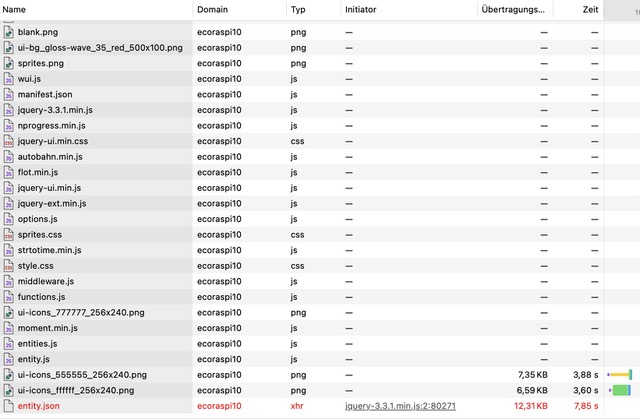

Dateiname : Bild 23.08.25 um 18.56.jpeg
